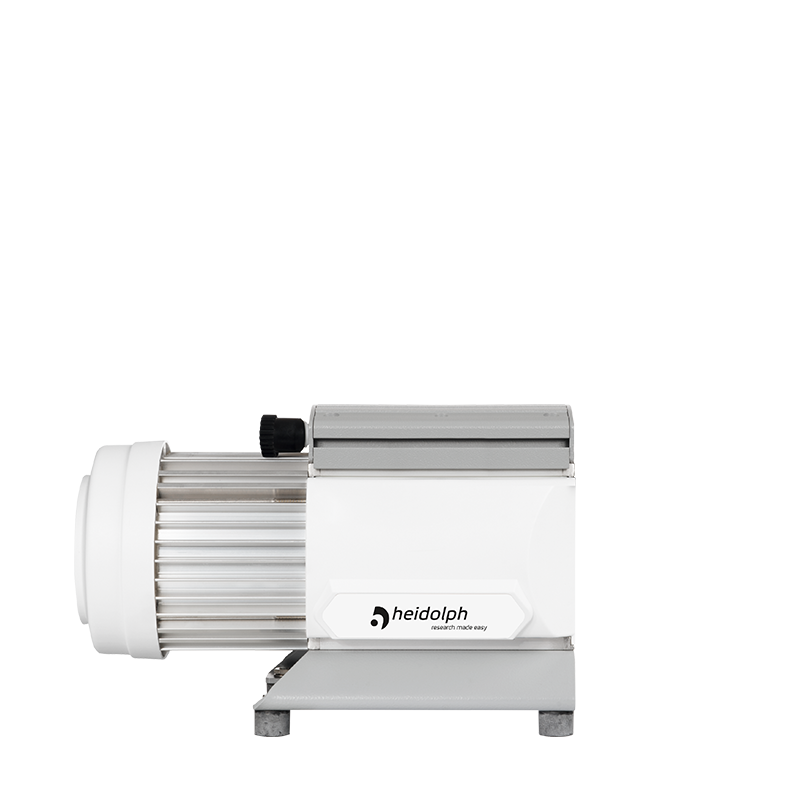

Hei-VAC Valve Tec
P/N: 591-00160-00
- Recommended for solvents with low or medium boiling points
- Vacuum can be controlled via valve operated or manual vacuum controllers
- A Vacuum valve is necessary, if you want to combine this vacuum pump with the Hei-VAP Expert Control / Hei-VAP Ultimate Control rotary evaporators
Condenser is not in scope of delivery.
Technical Data
Hei-VAC Valve Tec
Dimensions (W × H × D)
338x183x143 mm
Weight
7,9 kg
Protection class (EN 60529)
IP 40
Connection
n.a.
Operating temperature
+10 - +40°C
Motor protection
thermal cutout, manual reset(b) 120 V version: additional fuse 2.5 AT
Storage temperature range
-10 - +60°C
Power
Electrical: 0,08 kW
Maximum pumping speed
0.75 / 0.9 m3/h
Ultimate vacuum (absolute)
without gas ballast: 12 mbar | with gas ballast: 20 mbar
Maximum permissible pressure
1.1 bar
Permissible relative atmospheric moisture dur- ing operation (no condensation)
30% - 85%
Maximum no-load speed
1500 / 1800 min-1
Inlet
hose nozzle DN 8 mm
Outlet
hose nozzle DN 8-10 mm
Maximum permissible range of supply voltage ( ±10% )
100-115 V~ 50/60 Hz / 120 V~ 60 Hz 220-230 V~ 50/60 Hz
