R/N: 036306517

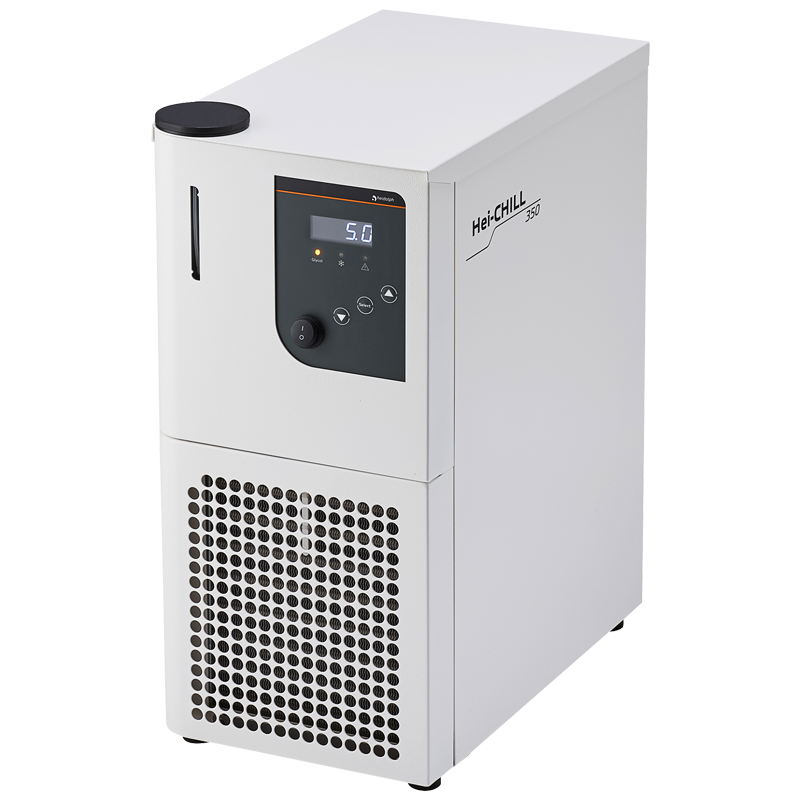

The compact design fits effortlessly on a laboratory bench and comes with a cooling capacity of 350 W*
- Arranged control elements, large LED display, membrane keypad, and window for monitoring the tempering liquid level
- Automatic start and shut down feature
- Temperature range from -10 °C to +40 °C
- Temperature stability of ±0.5 K
- Cooling capacity at +20 °C; 350 W
- Footprint of chiller: W 240 × D 430 × H 500 mm
* Cooling output at 20 °C measured with ethanol
Données techniques
Dimensions (l × h × p)
240 x 500 x 400 mm
Poids
36 kg
Affichage
7-segment, LED
Classe de protection (EN 60529)
IP 32
Catégorie de surtension
II
Refrigerant
R-134a
Alarm output connection
max. 30 V DC, 0.2 A
Contamination level
2
Distance to surroundings all around (cm)
40 cm
Cooling
Air-cooled
Standard supply voltage
115 V (60 Hz)
Cooling output (W)
350 W
GWP(100a)*
1430
Pump flow max.
9 I/min
Temperature range
-10°C – +40 °C
Temperature Stablility
± 0.5 K
Rated Power Intake (230 V / 115 V)
500 W / 500 W
Noise Level
< 70 dB(A)
Classification according to DIN 12876-1
I/NFL
Digital interface
RS 232
Coolant volume
4 – 7 l
Cooling capacity at +20°C (20°C ambient temp.)
350 W
Cooling capacity at 0°C (20°C ambient temp.)
200 W
Cooling capacity at -10°C (20°C ambient temp.)
120 W
Pump pressure max.
0.35 bar
Ambient temperature range (storage)
5°C – +40 °C
Transportation temperature range
-20°C – +60 °C
Admissible session
5°C – 31°C at 80 % rel. humidity <br> 32°C – 40°C decreasing linearly up to max 50% rel. humidity
