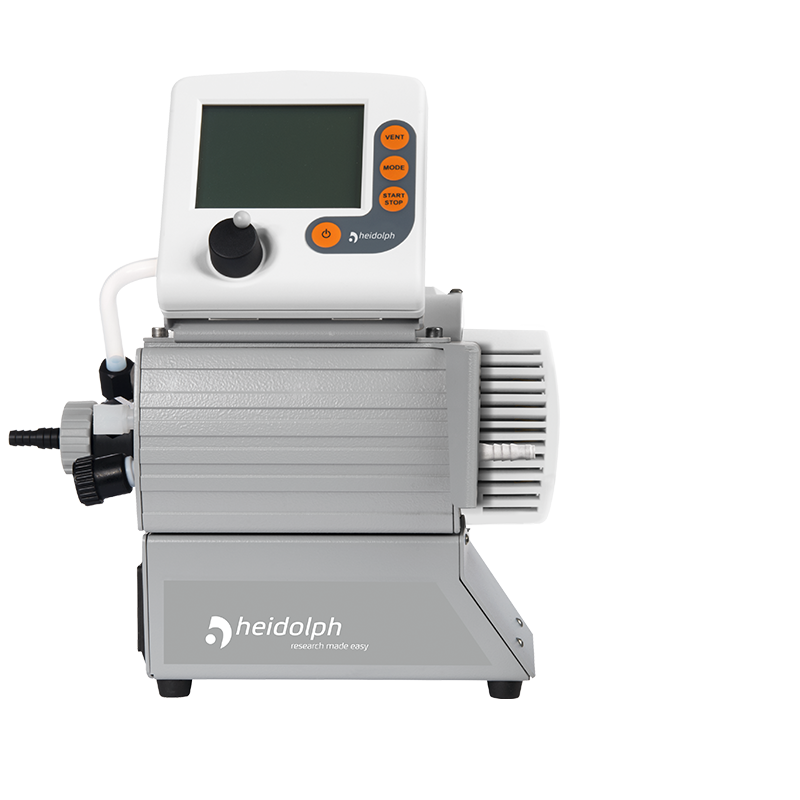

Hei-VAC Vario Station
P/N: 591-00142-00
Fully controllable stand-alone pumping unit including vacuum controller.
For Hei-VAP Core models
- Precise vacuum control avoids bumping and eliminates foaming of your evaporation solution
- Due to automatic vacuum supply to the process parameters you have more time for important laboratory activities
Condenser is not in scope of delivery.
Technical Data
Hei-VAC Vario Station
Dimensions (W × H × D)
294 x 192 x 299 mm
Weight
6 kg
Protection class (EN 60529)
IP 20
Connection
n.a.
Operating temperature
+10 - +40°C
Motor protection
temperature sensor on the pcb (current limitation)
Storage temperature range
-10 - +60°C
Power
Rated: 0.16 kW
Maximum pumping speed
1.7 m3/h
Ultimate vacuum (absolute)
without gas ballast: 5 mbar | with gas ballast: 7 mbar
Maximum permissible pressure
1.1 bar
Permissible relative atmospheric moisture dur- ing operation (no condensation)
30% - 85%
Maximum no-load speed
0 - 2400 min-1
Inlet
hose nozzle DN 8/10 mm
Outlet
hose nozzle DN 8 mm
Maximum permissible range of supply voltage ( ±10% )
100-120 V~ 50/60 Hz | 200-240 V~ 50/60 Hz
