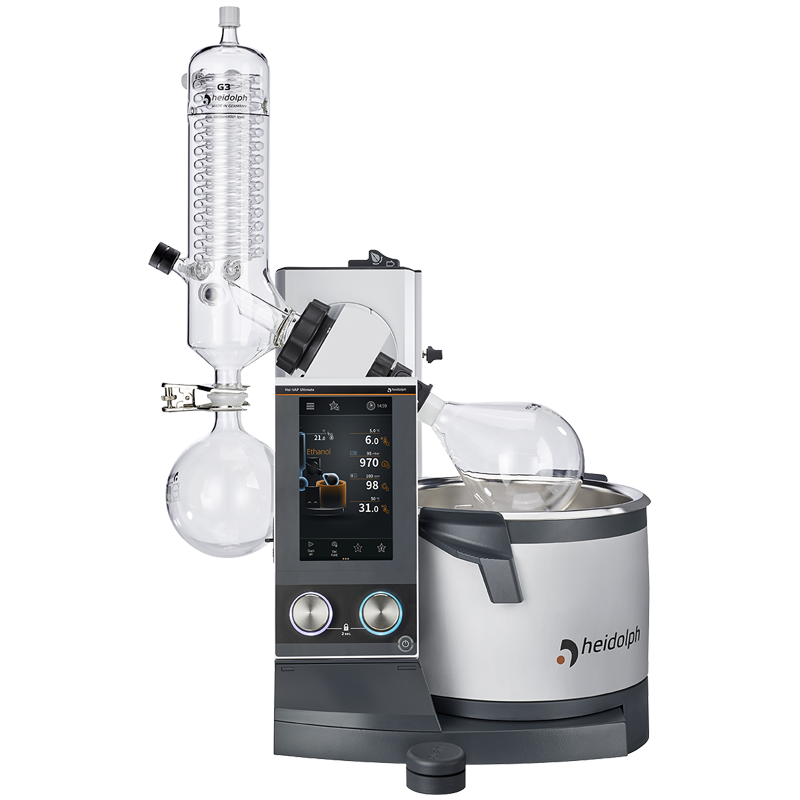

- Hei-VAP Ultimate Control - hand lift model with G3 vertical glassware
Hei-VAP Ultimate Control - hand lift model with G3 vertical glassware
P/N: 575-02300-00
Adds numerous smart features to the Hei-VAP Ultimate, as well as an overview of all parameters and the current process
- 7" touch display for controlling the entire system including the vacuum and the cooling temperature
- For precise monitoring, the pictogram on the display also symbolizes active functions
- Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation
- Setting of values either via the touch display or the separate quick access knobs
- Direct access to two favorites on the start screen
- Expandable solvent library. You can also transfer your own favorites to other devices using a USB stick
- Define and save own evaporation processes (ramps)
- Automatically evaporate with the Dynamic AUTOaccurate Program (DAA). Convenient and customizable: from foam avoidance to highly efficient evaporation
- USB and Micro SD plus LAN / RS 232 interfaces (Lab 4.0 ready)
Technical Data
Hei-VAP Ultimate Control - hand lift model with G3 vertical glassware
Dimensions (W × H × D)
Variant with motor driven lift & glassware G3: 739 × 887 × 477 mm; Variant with manual lift & glassware G3: 739 × 887 × 532 mm
Weight
approx. 15 kg, without glassware
Drive
EC motor
Speed range
10 – 280 rpm
Heating power
1300 W
Acoustic pressure
< 85 (dB(A)) (in accordance with IEC 61010)
Rated voltage
230 V (50/60 Hz) or 115 V (50/60 Hz)
Connection
L+N+PE
Protection class
Device IP20; Control panel IP42; Control-Box IP42; Connection cable heating bath IP67; I (IEC 61140)
Overvoltage category
II
Degree of pollution
2
Power input
1,400 W max.
Operating temperature
5 °C – 31 °C at up to 80 % rel. humidity | 32 °C – 40 °C at up to 50 % rel. humidity (linearly reducing)
Installation altitude
up to 2,000 m asl
Stroke flask lift
155 mm
Lifting speed flask lift
55 mm/s
Evaporation rates (L/h) ΔT* 40 °C (for continuous operation)
Toluene 8,5 | Acetone 5,8 | Ethanol 3,5 | Water 1,2
Maximum cooling surface
0.22 m2 (depending on glass set)
Heating bath
Inner Ø: 253 mm, outer Ø: 291 mm | Material: V4A steel (1.4404) X2CrNiMo 17-12-2 | Volume: 6 l
Temperature range heating bath
20 – 100 C° H2O / 20 – 210 C° oil
Overtemperature protection
Cut-off at 5 °C deviation from the set temperature
Overheat protection
Threshold value 250 °C
Control
electronic
Control accuracy
±1 °C
Storage conditions (recommendation)
5 °C – 31 °C at up to 80 % rel. humidity | 32 °C – 40 °C at up to 50 % rel. humidity (linearly reducing)
Accessories
Additional Accessories
Vacuum valve
Required to control vacuum for Hei-VAP Control models with valve-controlled vacuum pumps.
