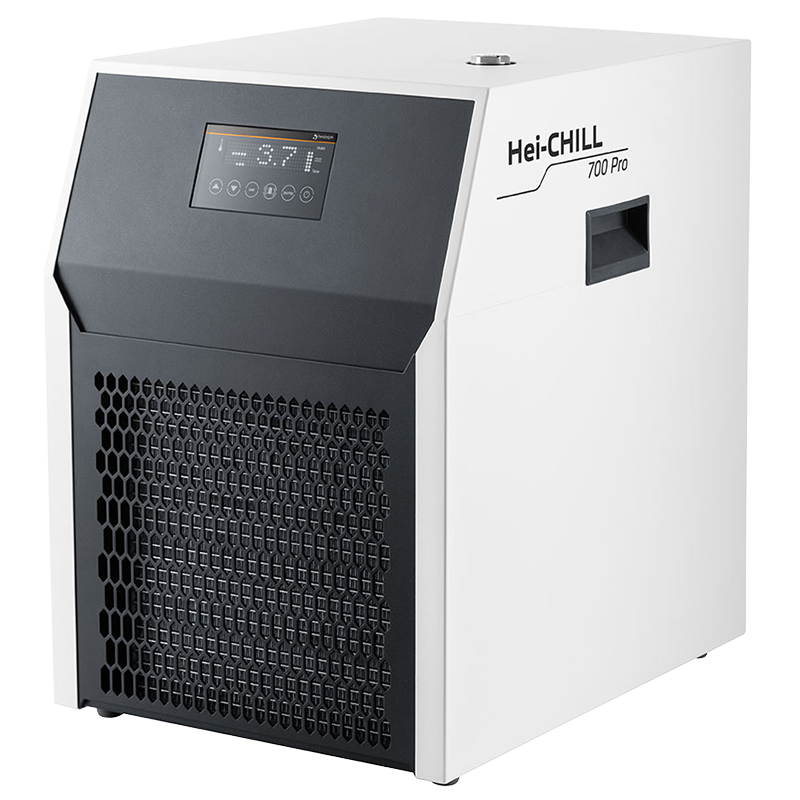

Hei-CHILL 700 Pro
P/N: 591-01650-00
Powerful 700 watt cooling for every evaporation process and large volumes.
- High performance for achieving the target temperature quickly and for keeping values constant even when using high-polar solvents
- Environmentally friendly by using natural refrigerants (R-290) and an efficient cooling system with low-energy fans
- Touchscreen controller with glass surface and integrated level indicator
- RS-232 connection for activating your device via a Hei-VAP Expert Control or Ultimate Control or via the Heidolph laboratory software solutions
- Reduced running noises for a comfortable work thanks to speed-controlled fans in line with your requirements
- For applications from -10 °C bis +40 °C with a temperature constancy of +/- 0,5 °C, reliable cooling for different workflows
Technical Data
Hei-CHILL 700 Pro
Dimensions (W × H × D)
External: 355 x 455 x 505 mm | Installation (W x D): 355 x 755 mm
Weight
39 kg
Protection class (EN 60529)
IP 20
Acoustic pressure
49 dB(A)
Connection
Electrical: 230 V / 50 Hz
Power input
500 W
Control accuracy
at -10°C: +/- 0,5 K
Working temperature range
-10°C to +40°C
Display resolution
0,1 K
Cooling capacity
at 20°C: 700 W | at 10°C: 550 W | at 0°C: 350 W | at -10°C: 120 W
Circulation pump
Flow rate [max.] 10,5 l/min | Flow pressure [max.] 2,8 bar
Hose connections
3/8" female thread
Coolant tank
5,5 to 9,0 l
Permitted ambient temperature range
5°C to 40°C
Max. temperature of coolant
60°C
Current [max.]
3,0 A
Class. acc. DIN 12876
I / NFL
Max. operating pressure
25 bar
Refrigerant
R290 (GWP 3*)
