Tornado Overhead Stirring System

Tornado Overhead Stirring System

N/P: 015861761

Use a single overhead stirrer to stir up to six round bottom flasks from 50 ml to 250 ml simultaneously. Increase your stirring productivity by up to 600%.

The Tornado allows powerful, controlled mechanical stirring of round bottom flasks with the Carousel 6 Reaction Station; offering unrivaled stirring for both viscous samples and for the dispersion of delicate solids in solution.

Features

  • Integrates with Carousel 6 to provide heated and stirred reactions
  • Rapid heating to 180°C, with water cooled reflux head
  • Perform reactions under an inert atmosphere
  • Accepts 50-ml, 100ml, and 250ml round bottom flasks
  • Uses a single overhead stirrer - save space and money compared with multiple set-ups
  • Compatible with all leading brands of overhead stirrer
  • 2-speed drive allows overhead stirrers with less torque to be used for higher viscosities
  • Stir to 1,000 rpm in low viscosity
  • Max. viscosity 10,000 mPas at 500 rpm



Choice of flask sizes and styles; with wide neck option

Wide neck flasks allow easier removal of viscous and solid samples and the use of larger stirrer blades. Baffles also improve stirring by disrupting the creation of a vortex.

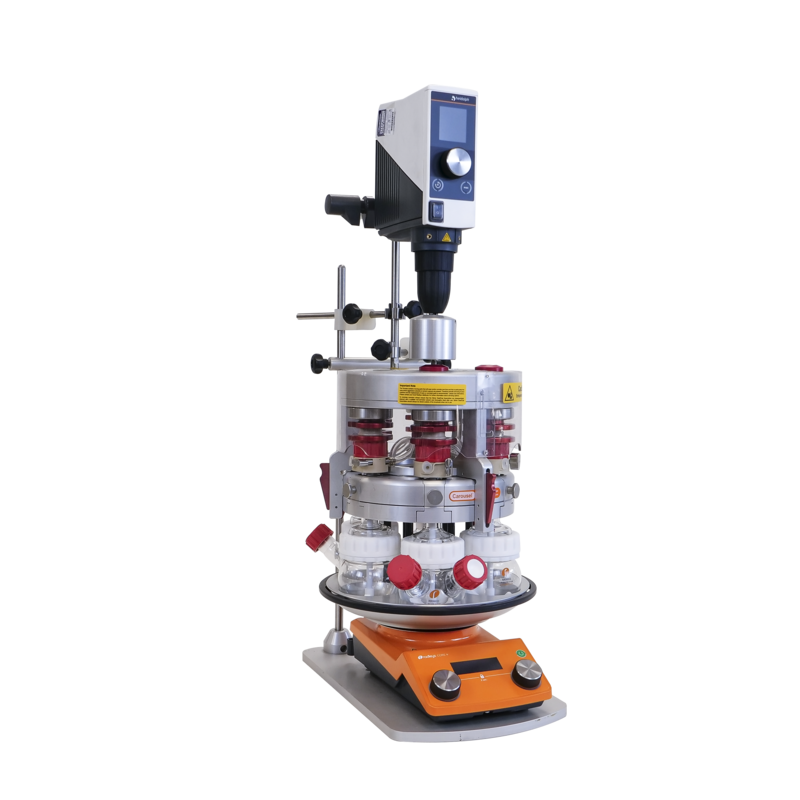

In order to purchase the displayed setup a series of part numbers must be ordered, there is no single part number.

Start With:

  • Carousel 6 Plus Reaction Station
  • Tornado OH Stirrer Station
  • Stand which includes base and support rods



To customize Tornado for your application choose the below accessories which you require. For ordering assistance, contact your Heidolph Application Specialist.

  1. Heidolph magnetic stirring hotplate
  2. Choose a temperature controller (based on which hotplate is chosen)
  3. Additional rod and extension to attach the controller to (varies with the type of controller)
  4. Reflux tubes
  5. Wide neck flasks
  6. Tubing if hooking up to inert gas
  7. Silicone seals for PTFE caps
  8. Stirrer Shafts (6 required, 1 for each)
  9. Heidolph overhead stirrer
