Chillers & Thermostats
|

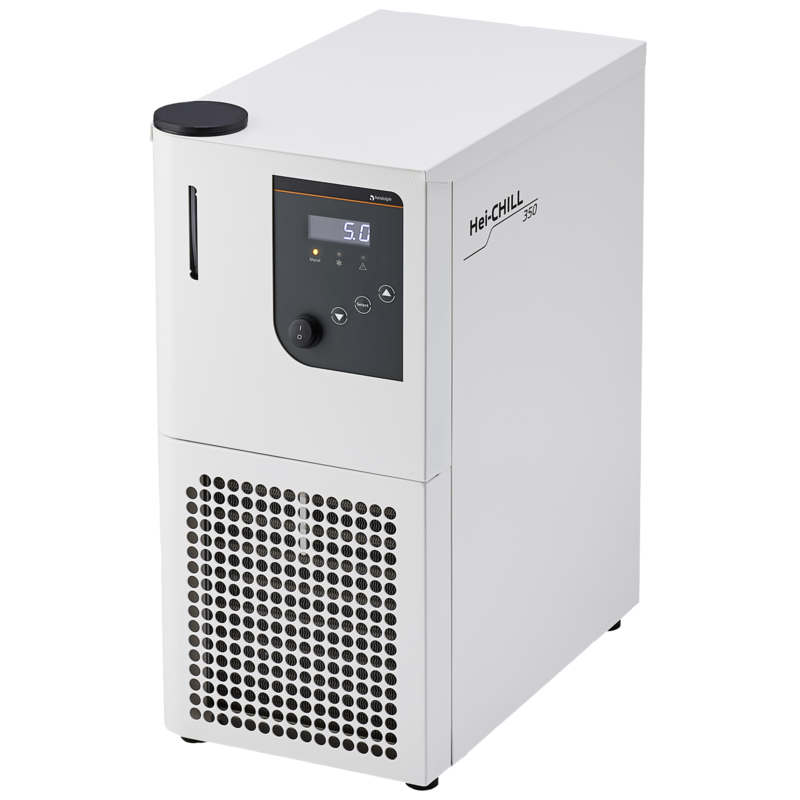

Hei-CHILL 350 NR

Hei-CHILL 350 NR

Hei-CHILL 350 NR

P/N: 036306417

Circulation chiller
1-line LED Display for display of actual or set temperature
User-friendly menu guidance with the simplest 3-key operation
Fully electronic continuous controller
Temperature protection for the pump windings, lighted level indication, and low-level alarm
Magnetically coupled block pump
RS-232 interface
Auto-Start-Timer and Auto-Shut-Down function
Filler opening on top, outlet connection on the backside
Cooling capacity adjustment by solenoid valve control, including compressor on-off control
Condenser cooling Air
Operates with non-flammable liquids (water, water/glycol)
Utilizes natural refrigerants

Choose Cooling Capacity

Request quote

Technical Data

Download Technical Data Sheet

Hei-CHILL 350 NR

Hei-CHILL 350 NR

Dimensions (W × H × D)

240 x 500 x 400 mm

Weight

31 kg

Display

LED

Working temperature range

-10°C...40°C

Display resolution

0.1°C

Interfaces

Alarm Output, RS 232

Resolution

N/A

Pump flow max.

9 L/min

Noise Level

57 dB(A)

Pump pressure max.

0.4 bar

Power Supply

115 V; 60 Hz

Filling Volume (Min)

4 L

Filling Volume (Max)

7 L

Power Consumption (Max)

0.5 kW

Power Plug

Cold Device Plug (IEC 60320, C14)

Protection Rating

IP 32

Temperature Stability

0.5 ± K

Refrigerant Stage 1

R-290 (GWP 3) A3; 0.041 kg; 0.0 t CO2 - eq

In/Outlet

8 mm

Safety Fittings

NFL

Resolution of Setting

0.1°C

Permissible Temperature Range During Storage

5°C...40°C

Permissible Temperature Range During Transport

-20°C...43°C

Protection Class

1
