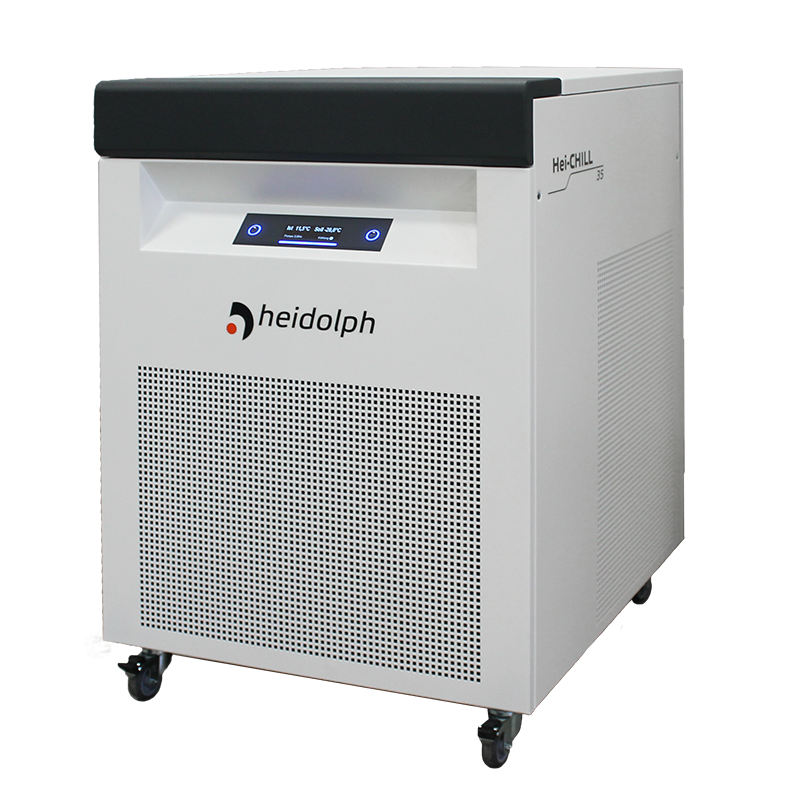

Hei-CHILL 35
P/N: 07000009
Industrial scale chiller for demanding temperature control tasks with a cooling capacity of 3500Watts at 10C. Optimized for cooling of the Hei-VAP industrial
- Designed to reach process temperature significantly faster
- Top fill design with pump out removal
- Touchscreen panel for simple operation
- Temperature Hysteresis to reduce power consumption and lower laboratory background noise
- For cooling temperature ranges of -20 to +15 degrees Celsius
- 4bar pressure capacity to enable a wider range of equipment compatibility.
Technical Data
Hei-CHILL 35
Dimensions (W × H × D)
22.8x26.0x32.3 (in)
Cooling
Power at -10°C: 2 | at -20°C: 1 | at 0°C: 2.5 | at 10°C: 3.5 | at 15°C: 4
Power supply
208V 2~ 60 Hz
Bypass for adjusting flow pressure
x
Connections all G thread male fittings
1/2"
Potential free contact for alarm
Optional
Pump flow max.
30
Pump max. (bar)
4
Remote Controller incl. 40m cable
not possible
RS232
x
Tank size
15
Temperature range
15 to -20°C
Thermofluid Water/Monoethylene Glycol 50:50
x
