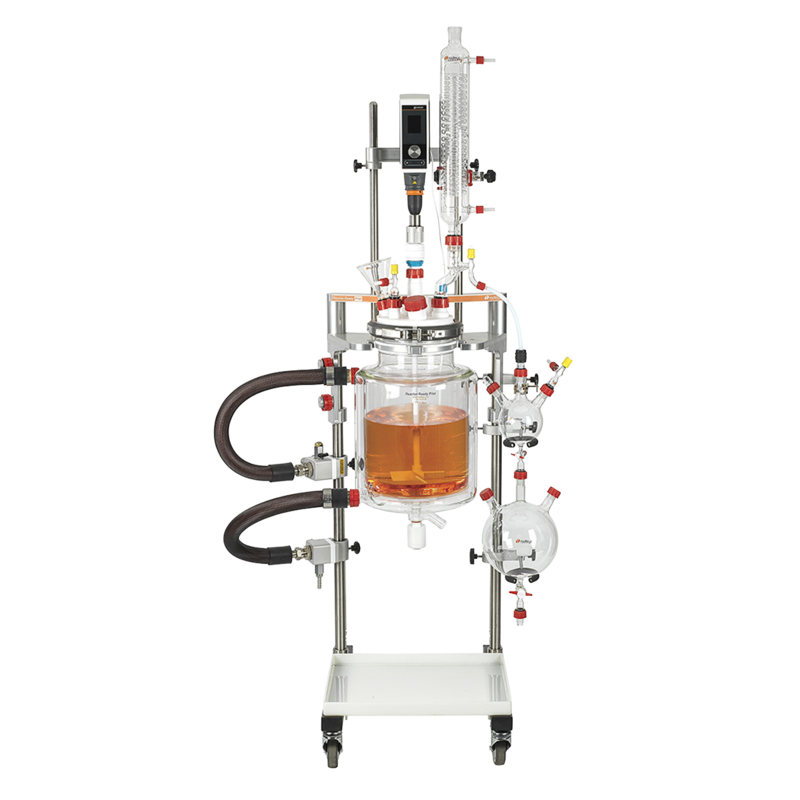

Reactor-Ready Pilot Core System
P/N: 015908000
The Reactor-Ready Pilot has rapid vessel exchange with quick-release vessel clamps and wide-bore hose couplings. Range of single and vacuum jacketed vessels from 5 L to 20 L - vessels have a 1.25 to 1 ratio of internal height to diameter to mimic plant scale reactors. Accepts all leading brands of overhead stirrers and allows easy, tool-free adjustment, has a compact stainless steel framework that accepts all vessel sizes, and self-aligning stirrer coupling engages without the need for tools. Has innovative hose manifolds that allow easy thermofluid drain down, and a temperature range of -70°C to 230°C.
Technical Data
Reactor-Ready Pilot Core System
Frame Height
1900mm with wheels (1800mm with feet)
Frame Height - 015950404 200mm Height Reduction Kit
1700mm with wheels (1600mm with feet)
Frame Height - 015950403 300mm Height Reduction Kit
1600mm with wheels (1500mm with feet)
Frame Width
540mm (approx. 800mm with hoses)
Frame Depth
650mm
Vessel Sizes
5L, 10L, 15L, 20L
Thermofluid Temperature Range
-70°C to +230°C
Hose Size and Bore
M30, 20mm ID
Flange Size
DN200 flange
Lid Ports
6 or 7 ports
Max. Vacuum
10mbar
Max. Pressure
0.5 Bar
