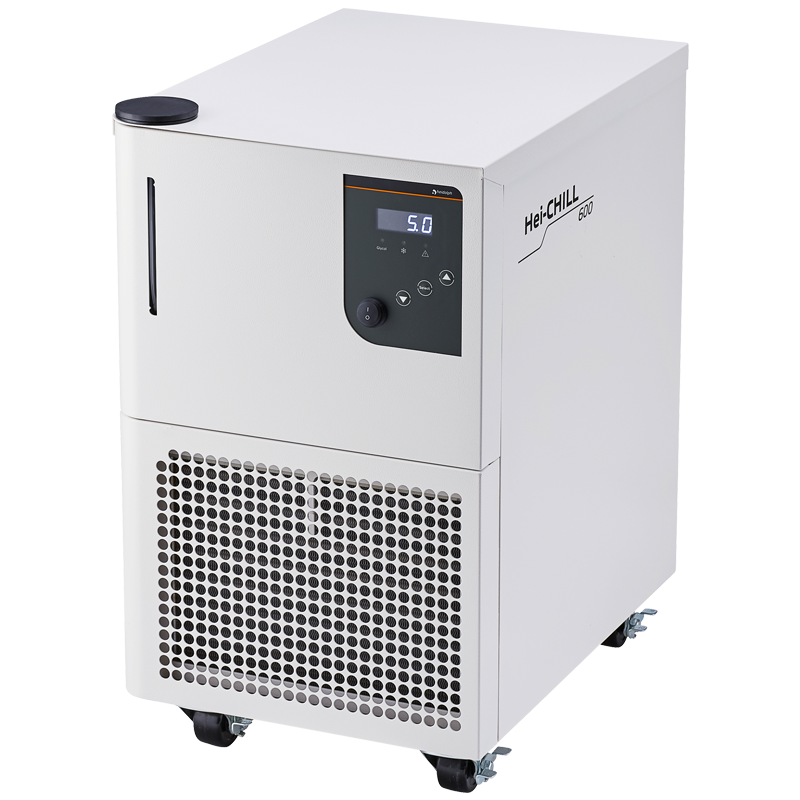

Hei-CHILL 600
P/N: 036306518
With rollers for placement under a lab bench.
- Comes with a cooling capacity of 600 W*
- Arranged control elements, large LED display, membrane keypad, and window for monitoring the tempering liquid level
- Automatic start and shut down feature
- Temperature range from -10 °C to +40 °C
- Temperature stability of ±0.5 K
- Cooling capacity at +20 °C; 600 W
- Footprint of chiller: W 350 x D 480 x H 595 mm
* Cooling output at 20 °C measured with ethanol
Technical Data
Hei-CHILL 600
Dimensions (W × H × D)
350 x 595 x 480 mm
Weight
52 kg
Display
7-segment, LED
Protection class (EN 60529)
IP 32
Overvoltage category
II
Refrigerant
R-134a
Alarm output connection
max. 30 V DC, 0.2 A
Contamination level
2
Distance to surroundings all around (cm)
40 cm
Cooling
Air-cooled
Standard supply voltage
115 V (60 Hz)
Cooling output (W)
600 W
GWP(100a)*
1430
Pump flow max.
20 I/min
Temperature range
-10°C – +40 °C
Temperature Stablility
± 0.5 K
Rated Power Intake (230 V / 115 V)
700 W / 750 W
Noise Level
< 70 dB(A)
Classification according to DIN 12876-1
I/NFL
Digital interface
RS 232
Coolant volume
4 – 8 l
Cooling capacity at +20°C (20°C ambient temp.)
600 W
Cooling capacity at 0°C (20°C ambient temp.)
360 W
Cooling capacity at -10°C (20°C ambient temp.)
150 W
Pump pressure max.
1.3 bar
Ambient temperature range (storage)
5°C – +40 °C
Transportation temperature range
-20°C – +60 °C
Admissible session
5°C – 31°C at 80 % rel. humidity <br> 32°C – 40°C decreasing linearly up to max 50% rel. humidity
