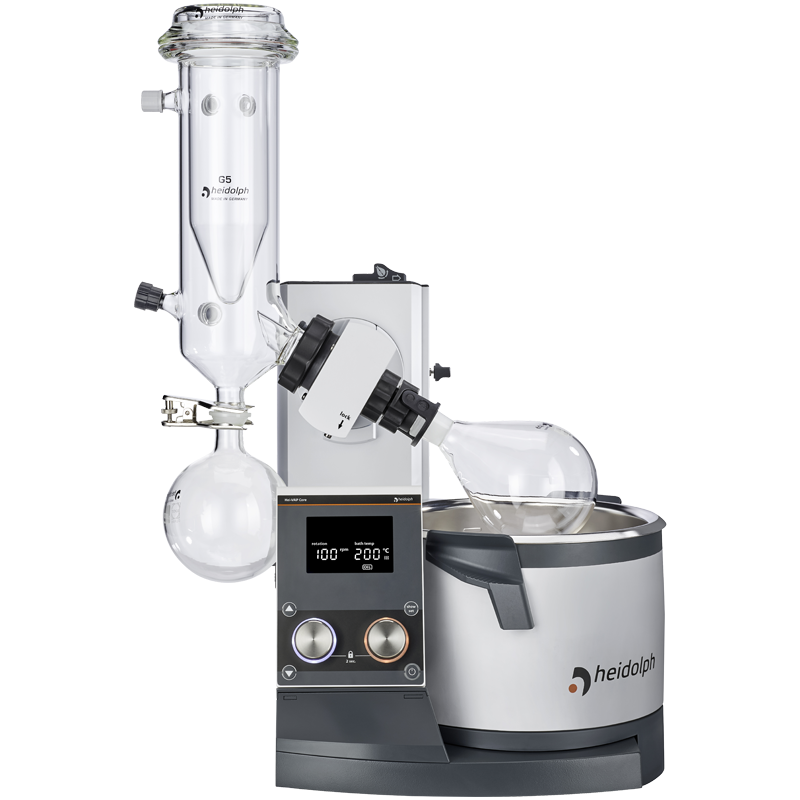

Hei-VAP Core - motor lift model with G5 dry ice condenser
P/N: 036040063
An operating concept that is focused on the essentials: clear and with access to the basic parameters rotation speed and heating bath temperature at any time.
- Clear digital display showing actual and set values
- Two separate knobs with dynamic control for setting the rotation speed and heating bath temperature: fast turning for large jumps, slow turning for precise setting of the set values
- Accidental changing of the values can be prevented by the lock function
- Intuitive LED ring light system makes activated functions clearly visible even from a distance
- Easy adjustment of the immersion depth up to 155 mm and the inclination angle from 20° to 80°
- Standby function and residual heat warning at heating bath temperatures above 50 °C
- Motor lift model with G5 dry ice condenser
- The standby button stops all functions and, when using a motor lift model, lifts the evaporating flask from the heating bath.
Technical Data
Hei-VAP Core - motor lift model with G5 dry ice condenser
Dimensions (W × H × D)
Variant with motor driven lift & glassware G3: 739 × 845 × 432 mm; Variant with manual lift & glassware G3: 739 × 845 × 487 mm
Weight
Variant with motor driven lift: 15 kg | Variant with manual lift: 14,7 kg
Drive
EC motor
Speed range
10 – 280 rpm
Heating power
1300 W
Acoustic pressure
< 85 dB(A) (based on IEC 61010)
Rated voltage
230 V 50/60 Hz or 115 V 50/60 Hz
Connection
n.a.
Protection class
Device: IP 20 | Cable heating bath: IP 67
Overvoltage category
n.a.
Degree of pollution
n.a.
Power input
1,400 W max.
Operating temperature
n.a.
Installation altitude
n.a.
Stroke flask lift
n.a.
Lifting speed flask lift
25 mm/s
Evaporation rates (L/h) ΔT* 40 °C (for continuous operation)
Toluol 8.5 | Acetone 5.8 | Ethanol 3.5 | Water 1.2
Maximum cooling surface
0.22 m2 (depending on glass set)
Heating bath
inner Ø: 253 mm, outer Ø: 291 mm | Material: V4A-steel (1.4404) stainless steel X2CrNiMo 17-12-2 | Volume 4.5 L
Temperature range heating bath
20 - 100 H2O / 20 - 210 oil
Overtemperature protection
cut off at 5 °C difference to set temperature
Overheat protection
250 °C
Control
electronic
Control accuracy
±1
Storage conditions (recommendation)
n.a.
Knowledge & Downloads
Hei-VAP continuos operation certificate
Download
EU Declaration of conformity Hei-VAP
Download
NRTL Certificate Hei-VAP
Download
Chiller Selection Matrix
Download
Vacuum Configurator Matrix
Download
Operating instructions Hei-VAP Core
Download
Safety Guide Rotary evaporators
Download
Hei-VAP
More details
FAQ
Can the Hei-VAP Benchtop rotary evaporator be flooded with inertgas?
Yes, the rotary evaporator can be flooded with inertgas via the ventilation valve of the vacuum box.
In addition, a external pressure reducer is required to not exceed 0.2 bar overpressure (overpressure shutdown of Hei-VAP Precision).
Can a spider with ground joint 24/29 be attached to a Hei-VAP with ground joint 24/40?
A spider NS 24/29 can be used on an evaporator with NS 24/40. There is no adapter or other accessories needed.
