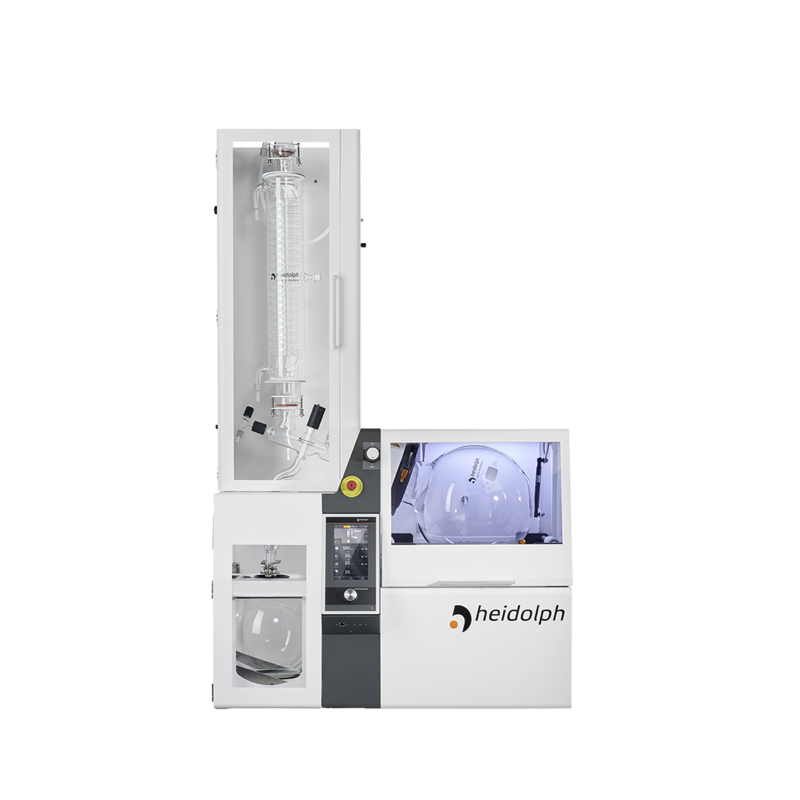

Hei-VAP Industrial with glassware R
P/N: 036072000
- Picture similar
- Excellent user safety with high-impact transparent PMMA door
- Non-fogging safety glass and metal frame guard hood provides excellent user protection
- The evaporation flask is illuminated during operation for increased visibility
- Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C
- Receiver cassettes and additional PMMA door housing protect against threat of glassware breakage
- Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom
- Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories
- Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ)
- Large touch screen control panel with illuminated displays for all process parameters, programmable ramps
Hei-VAP Industrial model with glassware R: For reflux and high boilers
This glassware assembly includes one ascending condenser, one 20-l evaporating flask, one 10-l receiving flask
Technical Data
Hei-VAP Industrial with glassware R
Dimensions (W × H × D)
998 × 2,225 × 694 mm
Weight
approx. 120 kg, without glassware
Drive
EC motor
Speed range
6 – 160 rpm
Heating power
4,000 W
Acoustic pressure
< 85 (dB(A)) (in accordance with IEC 61010)
Rated voltage
3 × 400 V (50/60 Hz) or 1 × 230 V (50/60 Hz)
Connection
L1+L2+L3+N+PE or L+N+PE
Protection class
I
Overvoltage category
II
Degree of pollution
2
Power input
4,600 W max.
Operating temperature
5 °C – 31 °C at up to 80 % rel. humidity | 32 °C – 40 °C at up to 50 % rel. humidity (decreasing linearly)
Installation altitude
up to 2,000 m asl
Stroke flask lift
180 mm
Lifting speed flask lift
45 mm/s
Evaporation rates (L/h) ΔT* 40 °C (for continuous operation)
Toluene 26.0 | Acetone 25.9 | Ethanol 12.9 | Water 4.7
Maximum cooling surface
1.2 m2 (depending on glass set)
Heating bath
Inner Ø: 397 mm, outer Ø: 400 mm | Material: V4A steel (1.4404) X2CrNiMo 17-12-2 | Volume: 18 L H 2O / 14 L oil
Temperature range heating bath
20 – 100 C° H2O / 20 – 180 C° oil
Overtemperature protection
integrated, mechanical
Overheat protection
n.a.
Control
detachable, 7 inch touchpanel, control knobs
Control accuracy
± 1 C°
Storage conditions (recommendation)
5 °C – 31 °C at up to 80 % rel. humidity | 32 °C – 40 °C at up to 50 % rel. humidity (decreasing linearly)
Permissible leakage rate
1 mbar/min
Degree of protection, device
IP20
Control panel degree of protection
IP45
Heating bath temperature control
Microprocessor
Required pump capacity
1,5 – 3 (m3/h)
Consumption cooling liquid
150 – 250 (L/h)
